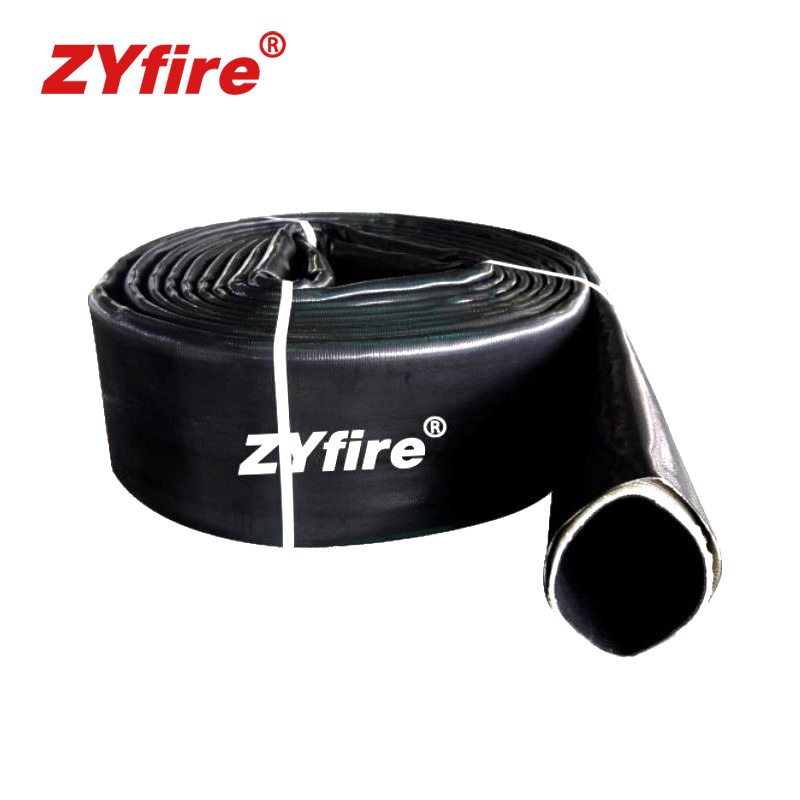

Fuelflex Hose - Through-the-weave TPU covered and NBR inner hose

Fuelflex Hose

Through-the-weave TPU covered and NBR inner hose

Cover and Lining: Through-the-weave polyurethane coating and NBR lining.

Reinforcement Jacket: High tenacity synthetic jacket.

Application: Natural gas transportation system.

Advantage: High pressure lay flat fuel hose, UV Stabilized, Advanced anti-static.

Temperature range: -40℃ to 70℃ （-40℉ to 160℉）

Available length: 100m (330ft), 200m (660ft).

Color: Green, black

Total four layers:

1. A perfectly smooth inner nitrile rubber layer.

2. A high-tenacity polyester inner layer with great flexibility and strength.

3. External fabric protects the 2^nd layer.

4. Outer layer of TPU cover.

I.D.		Service   Pressure		Minimum   Burst Pressure		Tensile   Strength
inch	mm	bar	psi	bar	psi	kgs	lbs
2”	51	100	1450	210	3045	12000	26000
2   1/2”	63.5	100	1450	210	3045	18000	39000
3”	76	100	1450	210	3045	29000	63500
4”	102	75	1088	160	2320	37000	80000
6”	153	75	1088	155	2248	60000	130000
8”	204	75	1088	155	2248	90000	195000

*All above technical parameters are for reference, no notice if any changes, details please confirm with ZYfire..
