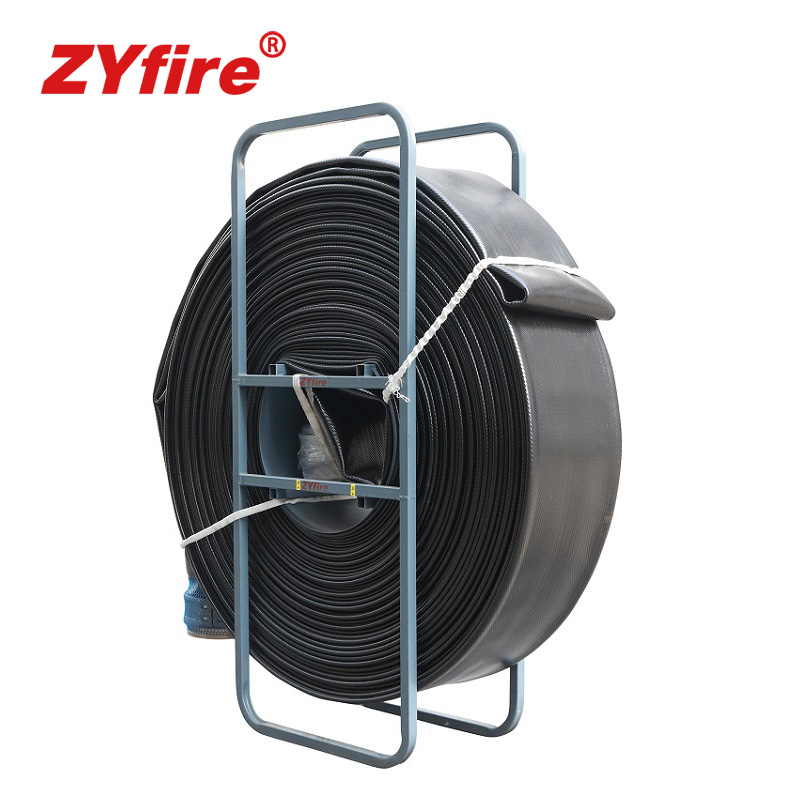

Fracflo Hose Plus - Through-the-weave TPU hose for produced water

Fracflo Hose Plus

Through-the-weave TPU produced water hose

Cover and Lining: TPU (Extrusion through-the-weave)

Reinforcement Jacket: 100% high tenacity polyester filament.

Temperature range:-50℃ to 80℃ （-58℉ to +178℉）

Available length: 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft)

Coupling: LDHC

Color: Blue, green, black, red

Nipple and Clamp:

Nipple--->316 Stainless Steel

Clamp---->Ductile Iron

Gasket--->Viton Rubber

Hose Technical Specification:

I.D.	Wall   Thickness	Service   Pressure	Minimum   Burst Pressure
inch	Approx.   inch	psi	psi
4”	0.138	≥250	≥750
6”	0.150	≥250	≥750
8”	0.177	≥300	≥900
10”	0.197	≥300	≥900
12”	0.228	≥200	≥600
14”	0.205	≥150	≥450
16”	0.205	≥150	≥450

*All above technical parameters are for reference, no notice if any changes, details please confirm with ZYfire.

Nipple Chemical Test:

Test   Item	Concentration   %	Temperature   Approx ℃	Endurance
Nitric   Acid	10	24	≥1 year
Phosphoric   Acid	＜5	＜100	≥1 year
Calcium   Chloride	10	24	≥1 year
Ammonium   Hydroxide	30	24	≥1 year
Sodium   Carbonate	10	100	≥1 year
Lead   Sulfate	30	24	≥1 year
Ammonium   Phosphate	any	24	≥1 year
Ammonium   Sulfate	any	24	≥1 year

*All above technical parameters are for reference, no notice if any changes, details please confirm with ZYfire..
