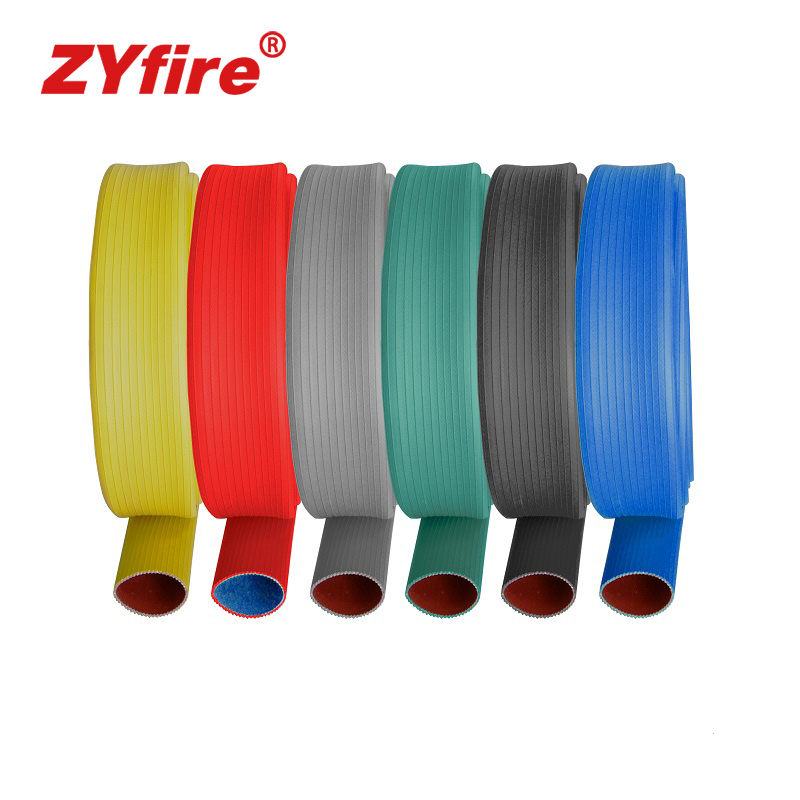

Lexus 4K - 4K Layers NBR nitrile rubber covered fire hose

Lexus 4K

1^st Layer: A perfectly smooth inner nitrile rubber layer completely resistant to the most aggressive liquids.

2^nd Layer: A high-tenacity polyester inner layer with great flexibility and strength.

3^rd Layer: An inner nitrile rubber layer that protects the fabric.

4^th Layer: External layer of specially formulated rubber with Hypalon.

Advantages:

The adhesion strength of through-the-weave internal layer is 50N, and our existing two steps hose also can reach 50N by improving the weave.

The outer layer adopts special materials (such as Hypalon, Nitrile Rubber Mixed with Kevlar Pulp etc) to increase abrasive and ageing resistance of hose, and greatly increase its service life.

The internal layer can be customized according to different operating environments and become widely used, (the internal layer materials NBR/TPR and EPDM, etc. Are available)

Characteristics:

Hose is resistant to different types of attack: abrasion, oil, acid, chemical, cracking, heat, adverse weather conditions, delamination, kinking, ozone, petroleum, etc.

Length: as per request

Temperature:-30℃ to +100℃

Internal lining material: customized.

Color: Yellow, red, grey, green, black, blue

Easy to coil, dry or deploy.

I.D		Weight		Thickness	Service   Pressure		Test   Pressure		Minimum Burst Pressure
inch	mm	g/m	lbs/ft	mm	bar	psi	bar	psi	bar	psi
1”	25	260	0.175	2.4	20-30	290-435	40-60	580-870	60-90	870-1305
1   1/2”	38	385	0.260	2.4	16-25	232-363	32-50	464-725	48-75	696-1088
1   3/4”	45	425	0.285	2.4	16-25	232-363	32-50	464-725	48-75	696-1088
2”	52	490	0.330	2.5	16-25	232-363	32-50	464-725	48-75	696-1088
2   1/2”	65	650	0.435	2.6	16-20	232-290	32-40	464-580	48-60	696-870
2   3/4”	70	700	0.470	2.6	16-20	232-290	32-40	464-580	48-60	696-870
3”	75	760	0.510	2.6	16-20	232-290	32-40	464-580	48-60	696-870

*All above technical parameters are for reference, no notice if any changes, details please confirm with ZYfire..
