Gas Solution Liner 300 - Inner TPU outer PE No-dig pipe rehabilitation liner
Home » Products » Trenchless » No-Dig Pipe Rehabilitation » Gas Solution Liner 300 - Inner TPU outer PE No-dig pipe rehabilitation liner

loading

Gas Solution Liner 300 - Inner TPU outer PE No-dig pipe rehabilitation liner Gas Solution Liner 300 - Inner TPU outer PE No-dig pipe rehabilitation liner

Gas Solution Liner 300 - Inner TPU outer PE No-dig pipe rehabilitation liner

Availability:
Quantity:
Inquire Add to Basket
Gas Solution Liner 300
Raw materials:
High tenacity fabric reinforcement layer,
Abrasion resistance PE cover,
Modified TPU tube.
Product Description

Gas Solution Liner 300

Raw materials:

High tenacity fabric reinforcement layer,

Abrasion resistance PE cover,

Modified TPU tube.

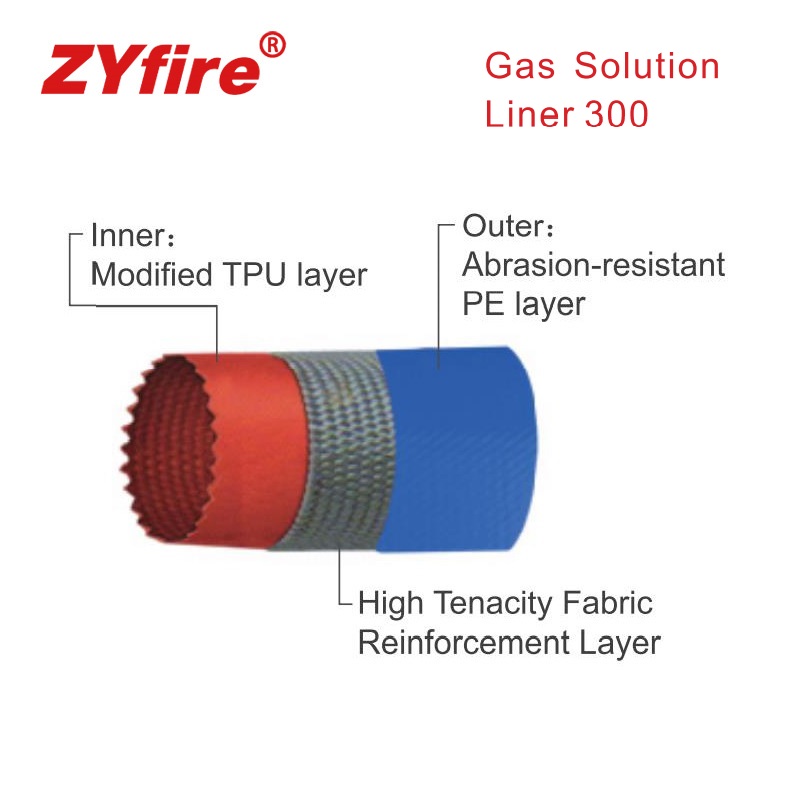

44 - Gas Solution Liner 300

Total three layers:

1. Inner: Modified TPU layer

2. High tenacity fabric reinforcement layer

3. Outer: Abrasion-resistant PE layer

Description

Parameter

Host Pipes ID:

50mm - 800mm (2” - 32”)

Max. Operation Pressure:

1.0 - 4.0 Mpa/145 psi - 580 psi

Max. Bursting Pressure:

3.0 - 12.0 Mpa/435 psi - 1740 psi

Max. Length of Installation:

≥3000m (9900ft)

Wall Thickness:

4mm - 8mm

Abrasion Resistance (DIN 53516)

10.5mm3

Temperature of Media:

-40℃（-40℉） - 70℃ （158℉）

Installation Mode:

Fold in U-shape

Pulling Speed:

Up to 400m/h

Service Life Duration:

20years

*All above technical parameters are for reference, no notice if any changes, details please confirm with ZYfire..
