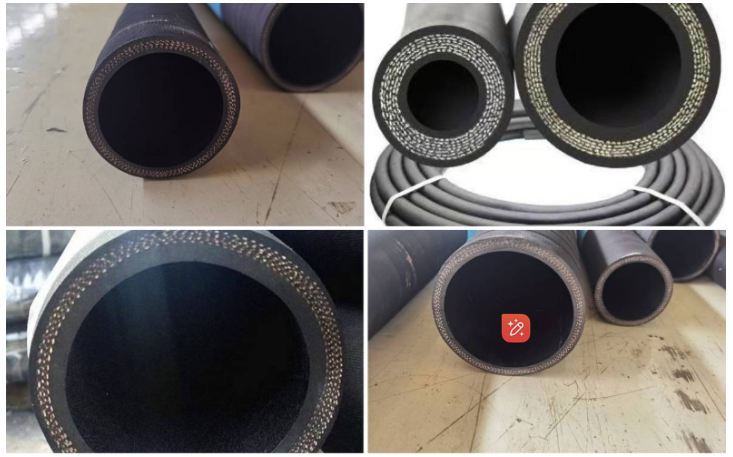

Material Suction And Discharge Hose
Tube: NR+BR.
Reinforcement layer: High tensile textile cord, with helix steel wire, antistatic wire
Cover rubber: NR+SBR
Working temperature：-20℃~80℃
Colour：Black
Safety factor：3:1
Application：Abrasion resistant tube and cover fabricated with highest quality material. Used in the transfer of dry materials & slurry and ideal fordry cement, pebble lime and other abrasive media.
| I.D. | W.P. | B.P. | Length |
| mm | inch | psi | bar | psi | bar | ft | m |
| 51 | 2" | 150 | 10 | 450 | 30 | 200 | 61 |
| 64 | 2-1/2" | 150 | 10 | 450 | 30 | 200 | 61 |
| 76 | 3" | 150 | 10 | 450 | 30 | 200 | 61 |
| 102 | 4" | 150 | 10 | 450 | 30 | 200 | 61 |
| 127 | 5" | 150 | 10 | 450 | 30 | 100 | 30.5 |
| 152 | 6" | 150 | 10 | 450 | 30 | 100 | 30.5 |
| Note: Specifications, pressures, colors, etc, can be customized according to requirements |
