Fracflo Hose

Views: 0     Author: Catherine Qian     Publish Time: 2023-08-24      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

图片 1

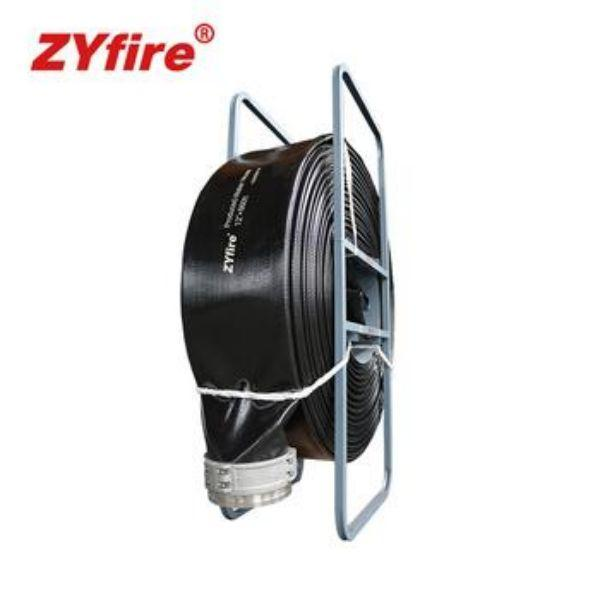

Through-the-weave TPU frac water hose

Color:Black,Red,Green,Blue

Cover and Lining: TPU, Ribbed cover or smooth cover.

Reinforcement Jacket: High tenacity synthetic jacket.

Application: Water transfer Fracturing

Available length:100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft)

图片 2

Hose can be with glow line on special requests!

The reinforcement is made from circular woven filament polyester yarn. The “extrusion through-the-weave” production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.

The hose has high resistance against commonly used chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation. The abrasion resistance of the TPU is one of the highest available, making the hose ideal for use in the extremely abrasive environment in open pit mines.

The outer cover has been designed with extra thickness in order to add wear & tear material. This extends the useful lifespan of the hose.

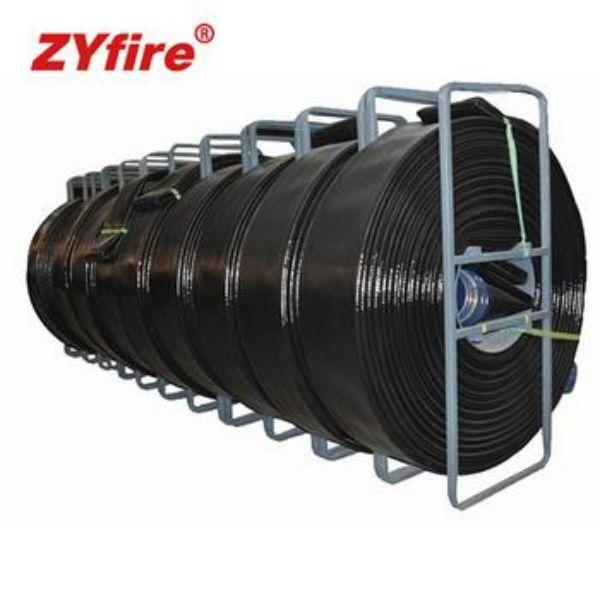

图片 3

I.D.

Tolerance

Wall Thickness

Service
  Pressure

Minimum
  Burst Pressure

Temperature
  Range

inch

mm

mm

mm

psi

psi


2"

51

51.0-53.0

1.80±0.20

250

750

-50℃ to 80℃

  -58℉ to 176℉

2"

51

51.0-53.0

3.50±0.20

410

1230

3"

76

76.0-78.0

3.00±0.30

250

750

3"

76

76.0-78.0

3.20±0.30

410

1230

4"

102

102-104.5

2.80±0.30

200

600

4"

102

102-104.5

3.50±0.30

250

750

4"

102

102-104.5

3.60±0.30

300

900

4"

102

102-104.5

4.80±0.40

610

1830

5"

125

125-127.5

3.60±0.30

150

450

6"

152

154-157

3.20±0.30

150

450

6"

152

154-157

3.80±0.30

250

750

6"

152

154-157

4.20±0.30

300

900

6"

152

154-157

5.80±0.40

410

1230

6"

152

154-157

5.50±0.40

610

1830

8"

204

204-207

3.80±0.30

200

600

8"

204

204-207

4.00±0.40

250

750

8"

204

204-207

4.20±0.40

300

900

8"

204

204-207

4.20±0.40

410

1230

10"

254

256-259

4.20±0.40

200

600

10"

254

256-259

4.50±0.40

250

750

10"

254

256-259

5.00±0.40

300

900

12"

306

306-311

4.20±0.40

150

450

12"

306

306-311

5.00±0.40

200

600

14"

356

356-360

4.80±0.40

150

450

16"

406

406-410

5.00±0.50

100

300

16"

406

406-410

5.40±0.50

150

450
