ZYfire Petroflo Hose for fuel & chemical transfer

Views: 1     Author: Site Editor     Publish Time: 2022-10-31      Origin: ZYfire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

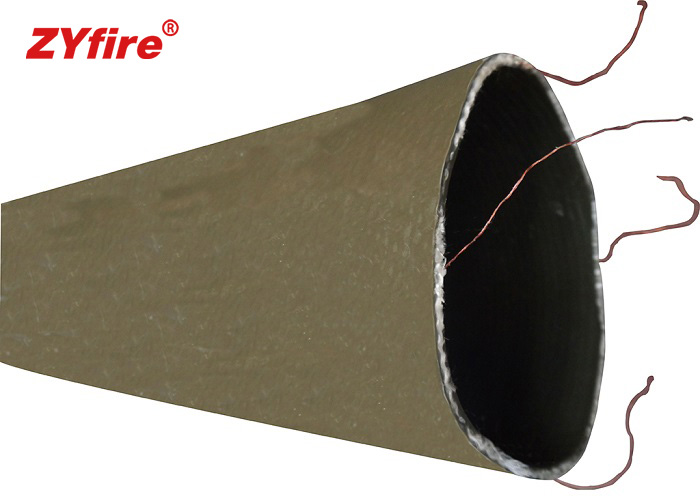

Through-the-weave copper wire TPU hose

Safe in use with full static charge control. Logistics solution with easy storage and transport, fast deployment and retrieval

A cost-effective large bore flexible layflat hose for fuel and chemical delivery operations.

Petroflo Hose is ideal for high capacity long distance temporary fuel supply lines, with smooth internal walls and reduction in number of couplings reduce the need for stage pumping.


带铜丝水带2副本


Easy to Store & Transport :Lightweight and compact for economical storage and transport.

Low Operating Costs: Low pressure loss for efficient pumping.

Long Service Life: Designed for long life and maintenance free service in even the harshest environments. Tough and durable with exceptional resistance to abrasion and cutting.

Static Discharge Wires: Rugged construction with built in static wires for safe, dependable deployments in challenging terrains, be electrically bonded when transferring fuels.


微信截图_20221031175506

Typical Applications:

Field

Applications

Refineries & Chemical Plants

Pipeline Bypass, Tank-to-Tank Transfer

Marine

Pollution Control and Clean-Up, Salvage Pumping

Industrial

Inert Gas Handling

Military

Bulk Fuel Transfer

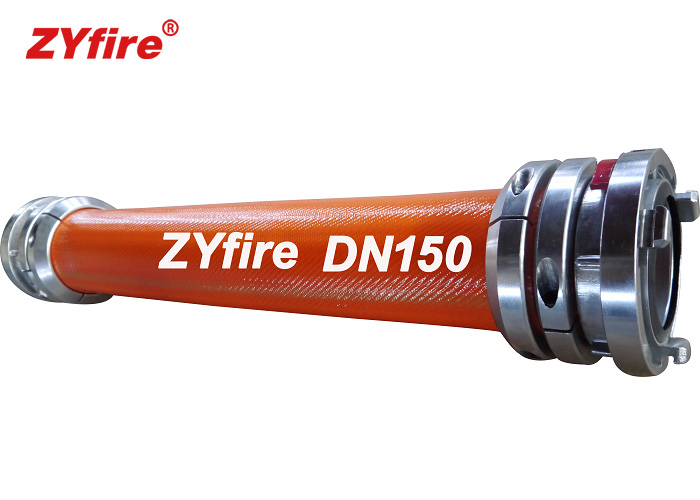

橙色带接扣样品水带2副本

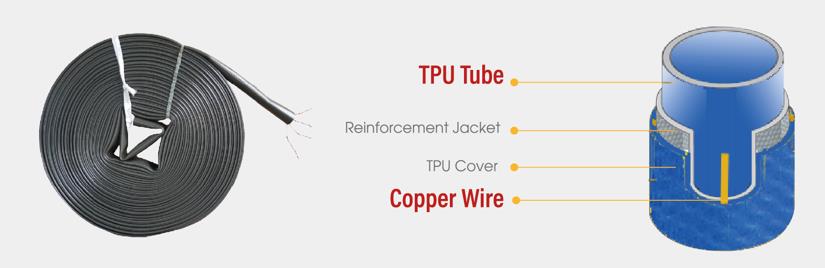

Tube and cover: TPU covered hose, extremely abrasion resistant, embedded with copper wires witch conduct static electricity.

Reinforcement: 100% virgin high tenacity polyester Jacket.

Application: Fuels transfer, flammable liquids transmission.

Standard length: 15m (50ft), 20m (66ft), 30m (100ft), 61m (200ft), 90m (300ft), 200m (660ft), 300m (990ft), 400m (1320ft)

I.D.

Service Pressure

Electrical Resistance

Minimum Burst Pressure

inch

mm

Psi/bar

Ω

Psi/bar

4”

102

300/21, 450/30, 720/50

4R, <2Ω/m

900/63, 1350/90, 2160/150

6”

152

300/21, 450/30, 720/50

4R, <2Ω/m

900/63, 1350/90, 2160/150

8”

204

250/17, 300/21, 720/50

4R, <4Ω/m

750/51, 900/63, 2160/150

10”

250

250/17, 300/21, 720/50

4R, <4Ω/m

750/51, 900/63, 2160/150

12”

300

250/17, 300/21, 720/50

6R, <4Ω/m

750/51, 900/63, 2160/150
