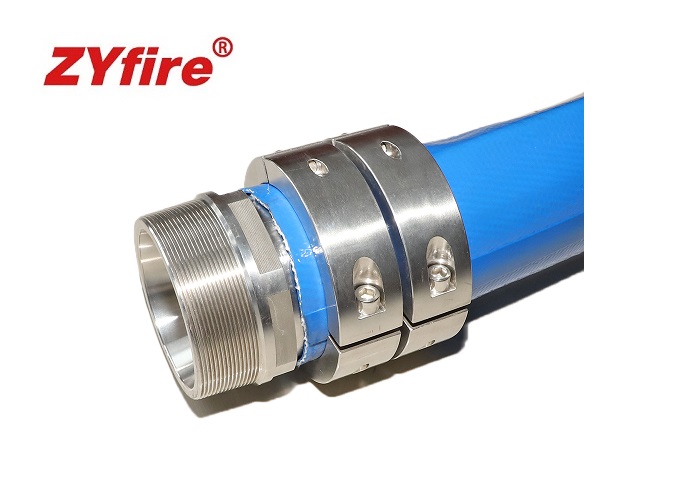

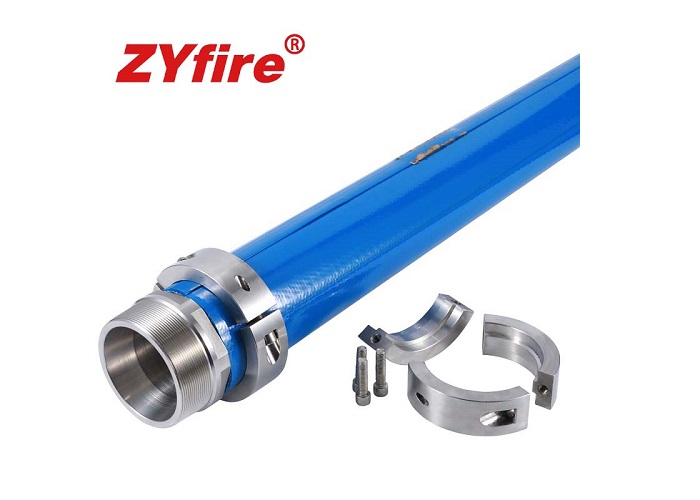

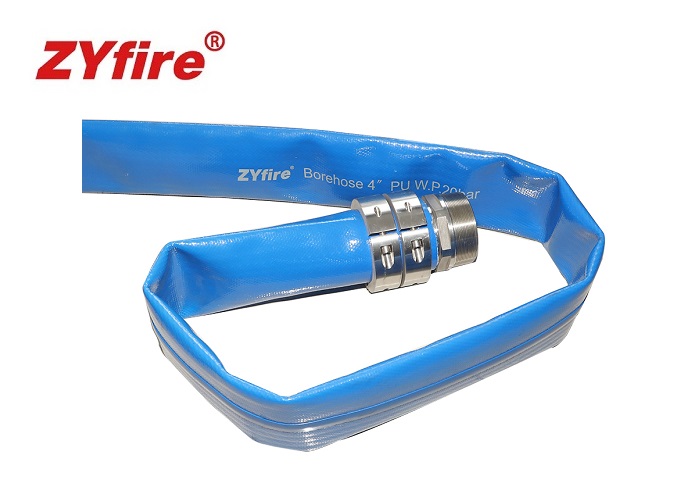

Bore water is an important source of agricultural, industrial and mining water supply. Bore water retrieval has been a difficult task over the years and has only been simplified with the current hose technology. The revolutionary of borehose ensures simple and effective bore water retrieval, mine de-watering and municipal water supply. Borehose is a flexible riser used for ground water pumping. This hose is constructed by integrating polyurethane into a woven textile fabric of high tenacity polyester. The heavy duty internal fabric gives the hose flexibility whilst sustaining the weight of a submersible pump. The Borehose holds both the pump and water weight so no safety cable is required.
This flexible and resilient layflat hose is designed to replace rigid riser pipes such as Poly and PVC which are subject to encrustations resulting in reduced flow rates. Poly pipe can be difficult to remove when the pump requires servicing. However it is very easy to lift using Borehose when the pump needs to be retrieved from the bore for servicing. In addition, it does not require safety cable when using Borehose due to its high tensile strength. Borehose is totally corrosion and microbiological damage resistant and will simplify your bore water pumping. Borehose is designed for easily transportable and can be installed at a much faster rate than rigid systems and provide multiple advantages to pump retrieval.
Borehose NSF
TPU Covered Hose
Cover and Lining: TPU, smooth cover with Blue Polypropylene Cable Ties/ Polyurethane Straps along the length.
Reinforcement Jacket: High tenacity synthetic jacket.
Application: Mine de-watering, domestic and municipal water supply, test pumping, rural and industrial bore water retrieval, similar ground water projects.
Standard length: 15m (50ft), 30m (100ft), 200m (660ft)
I.D. | Burst Pressure | Tensile Strength | Weight | Max loading | Max Diametral Swell | Max Extension | Temperature Range | Water PH range | ||
inch | mm | bar | kgs | Kg/m | kgs | % | % | ℃ | Below 30℃ | 30℃ to 50℃ |
1 1/2” | 40 | 52 | 3000 | 0.3 | 1080 | 15 | 1 | -40 to +50 | 4 to 9 | 5 to 9 |
2” | 51 | 58 | 4000 | 0.6 | 1600 | |||||
3” | 76 | 58 | 8000 | 0.9 | 3600 | |||||
4” | 102 | 52 | 15000 | 1.5 | 5000 | |||||
5” | 127 | 50 | 18000 | 2.0 | 6800 | |||||
6” | 152 | 44 | 24000 | 2.8 | 8000 | |||||
8” | 200 | 42 | 30000 | 3.5 | 10800 |
