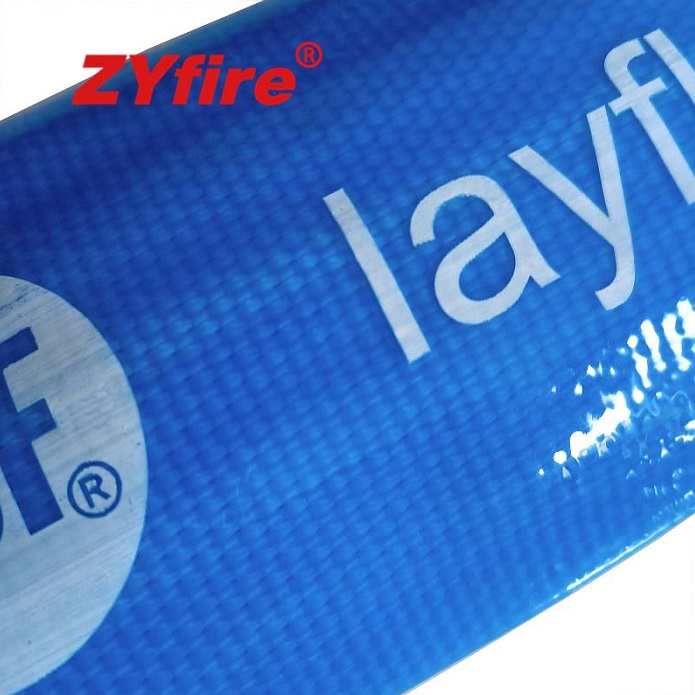

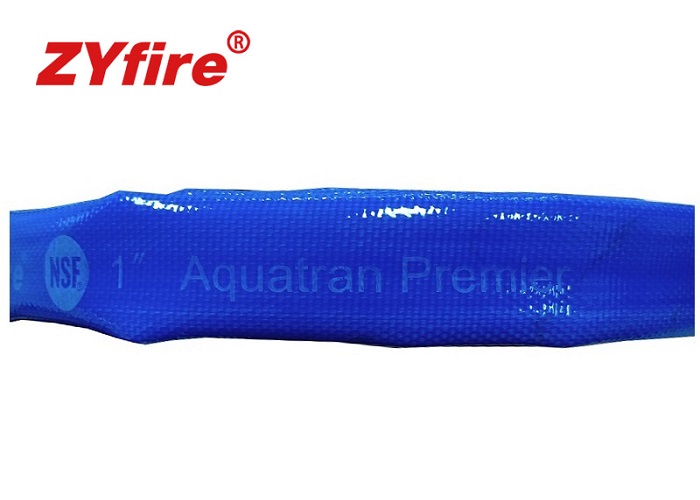

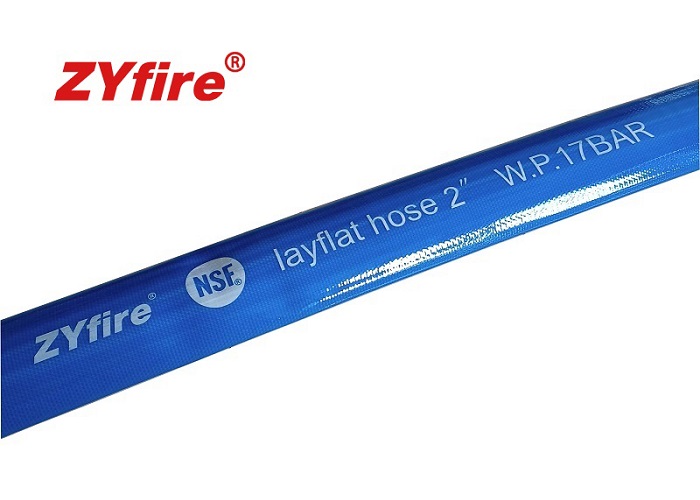

ZYfire Aquatran Premium layflat potable water hose approved by NSF-61, It is blue polyurethane layflat hose, used for potable water applications. Approved for transfer of potable water. Transfer large volumes of liquid with high working pressures.
Aquatran Premium is made from extruded thermoplastic polyether based polyurethane (TPU) with excellent wear & tear properties. The reinforcement is made from circular woven polyester filament. The extrusion through the weave production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.
Aquatran Premium NSF approved
TPU Covered Hose
Cover and Lining: TPU, smooth cover
Reinforcement Jacket: High tenacity synthetic jacket
Application: Potable water transfer
Standard length: 15m (50ft), 30m (100ft), 200m (660ft)
I.D. | Service Pressure | Minimum Burst Pressure | |
inch | mm | Psi/bar | Psi/bar |
2” | 50 | 250/17, 300/21 | 750/51, 900/63 |
2 1/2” | 65 | 250/17, 300/21 | 750/51, 900/63 |
3” | 75 | 220/15, 250/17 | 660/45, 750/51 |
4” | 102 | 150/10, 200/14 | 450/30, 600/42 |
5” | 127 | 150/10, 200/14 | 450/30, 600/42 |
6” | 152 | 150/10, 200/14 | 450/30, 600/42 |
