ZYfire Oneflex Premium Through-the-weave NBR hose

Views: 4     Author: Site Editor     Publish Time: 2022-12-26      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

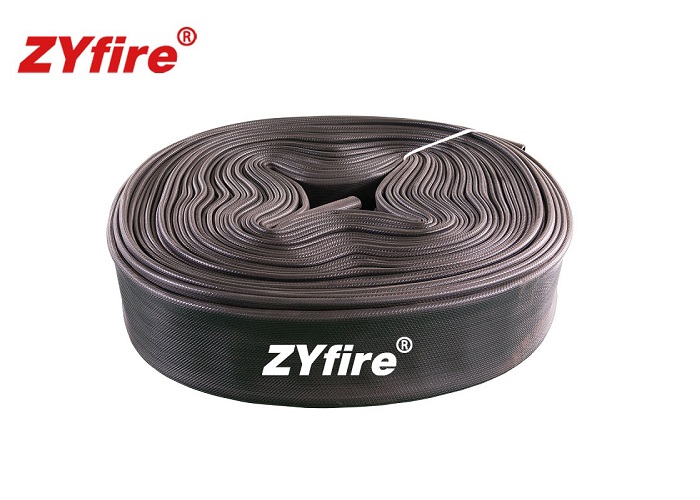

ZYfire Oneflex Premium is kind of through-the-weave Nitrile Rubber(NBR) covered hose. Oneflex Premium hoses are made from 100% high tenacity synthetic yarn circular woven, completely and totally embedded with NBR/PVC compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type.

47

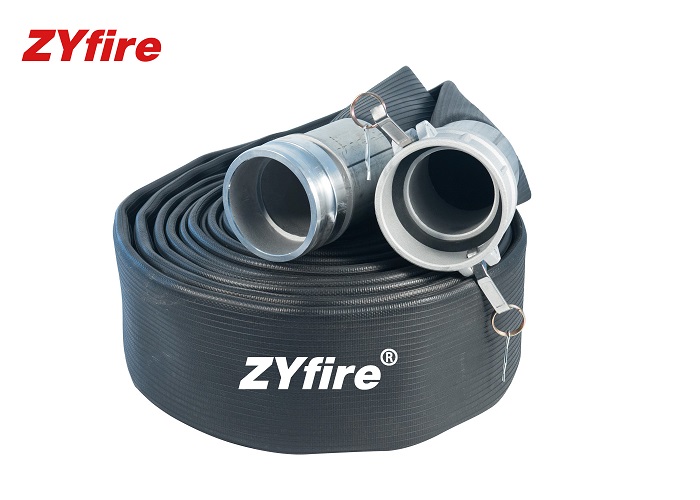

Features

Inner tube: Very smooth with minimum friction loss

Cover: Ribbed for more abrasion resistance

Reinforcement: Circular woven polyester jacket

161

Applications

Water discharge, Transfers, Drainage, Irrigation installations, Pumping of sludge and liquid fertilizers, Chemical industry, Refineries, Air pressure Premium Solution.

Standard length: 15m (50ft), 20m (66ft), 30m (100ft), 60m (200ft), 90m (300ft), 200m (660ft), 300m (990ft)

Temperature: -25℃ to +100℃ (-13℉ to 212℉)

ID

Tolerance

Wall Thickness

Service
  Pressure

Minimum
  Burst Pressure

Elongation
  At WP%

Expansion
  At WP%

Temperature
  Range

inch

mm

mm

inch

mm

psi

psi

max

max


3"

76

76-78

0.118±0.008

3.00±0.20

200

600

≤5

≤5

-30℃ to 80℃

  -22℉ to 176℉

4"

102

102-104

0.126±0.012

3.20±0.30

200

600

≤5

≤5

6"

152

154-157

0.126±0.012

3.20±0.30

200

600

≤5

≤5

6"

152

154-157

0.138±0.012

3.50±0.30

250

750

≤5

≤5

6"

152

154-157

0.165±0.012

4.20±0.30

300

900

≤5

≤5

8"

204

204-207

0.157±0.012

4.00±0.30

200

600

≤5

≤5

8"

204

204-207

0.165±0.012

4.20±0.30

300

900

≤5

≤5

8"

204

204-207

0.197±0.012

5.00±0.30

400

1200

≤5

≤5

10"

254

254-257

0.173±0.016

4.40±0.40

200

600

≤5

≤5

10"

254

254-257

0.177±0.016

4.50±0.40

300

900

≤5

≤5

12"

306

306-311

0.157±0.016

4.00±0.40

150

450

≤5

≤5

12"

306

306-311

0.177±0.016

4.50±0.40

200

600

≤5

≤5

14"

356

356-360

0.189±0.016

4.80±0.40

150

450

≤5

≤5

16"

400

406-411

0.181±0.016

4.60±0.40

100

300

≤5

≤5
